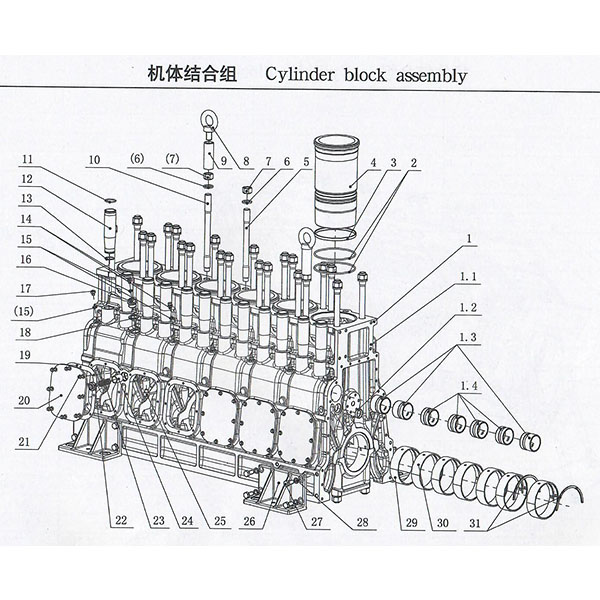

WEICHAI 1 CYLINDER BLOCK ASSEMBLY
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine Parts.
| Pos | Teile.number | Designation |
| 1 | 616001000055 | Engine block assmbiy |
| 1.1 | 616001000054 | Engine block |
| 1.2 | 170Z.01.50.11 | Bowi piock |
| 1.3 | 170Z.01.50.09 | Camshaft bearing |
| 1.4 | 170Z.01.50.07 | Camshaft bearing |
| 1.5 | 170Z.01.50.02A | Main bering cap |
| 1.6 | 170Z.01.50.03 | Main bering boit |
| 1.9 | 170Z.01.50.06A | Thrust bearing cap |
| 1.12 | 617001000096 | Main oil pipe |
| 2 | 616001000058 | O-ring |
| 3 | 616001000057 | Waterpeoof circle |
| 4 | 616001000056 | Cylinder Liner |
| 5 | 617001080002 | Cylinder head bolt |
| 10 | 617001080003 | Cylinder head bolt |
| 11 | 90017510022 | O-ring |
| 13 | 90017510018 | O-ring |
| 22 | 170Z.01.35 | Pressure-limiting valve piug |
| 24 | 170Z.01.33 | Pressure-limiting valve |
| 25 | 616001000053 | Spray nozzle set |
| 29 | 170Z.01.37 | Main bearing lower shell |
| 30 | 170Z.01.38 | Main bearing upper shell |
| 31 | 170Z.01.42 | Thrust plate |
